Toyota Land Cruiser LJ70 Thermostat broken

  • Posted on: 17 May 2016
  • By: Nomad
Toyota Land Cruiser LJ70 Engine temperature too low - too cold

With summer arriving engine temperatur in a Toyota Land Cruiser LJ70 is way too low.
The dashboard gauge shows a very low reading during long trips - time to have a look and replace the original thermostat

Measured temperature didn't reach above 64 celcius (147 Fahrenheit). This on a day of 32 Celsius / 89 Fahrenheit

The Thermostat is rated at 88 Celsius / 190 Fahrenheit and should keep the engine at this approximate temperature.

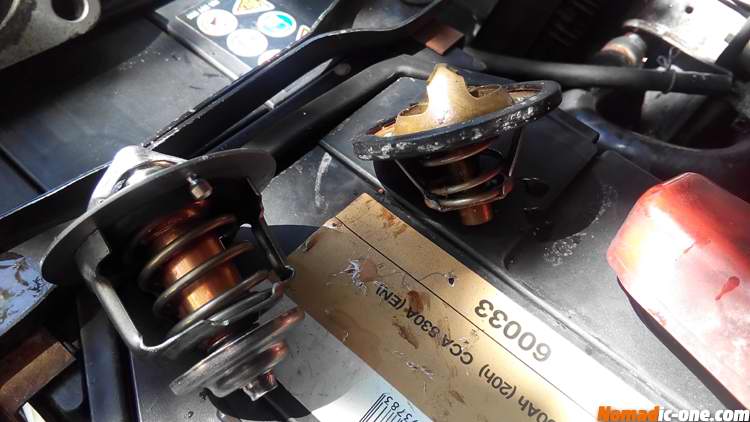

Toyota Land Cruiser LJ70 thermostat

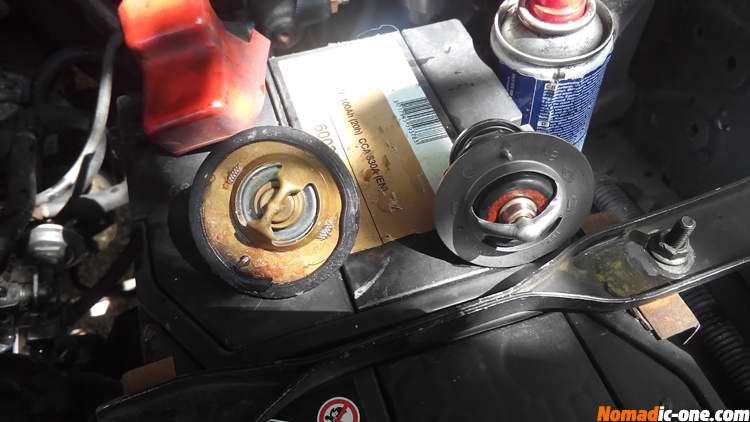

The old thermostat looks more simple, the rubber ring acts as a gasket.

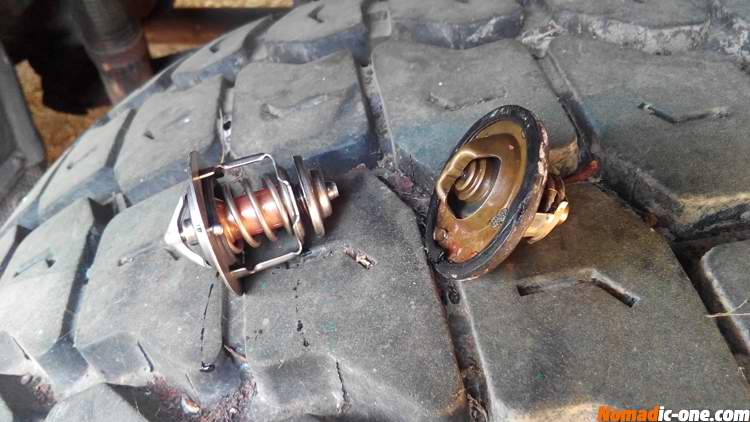

Land Cruiser LJ70 Thermostat

Front view

Toyota LJ70 Thermostat

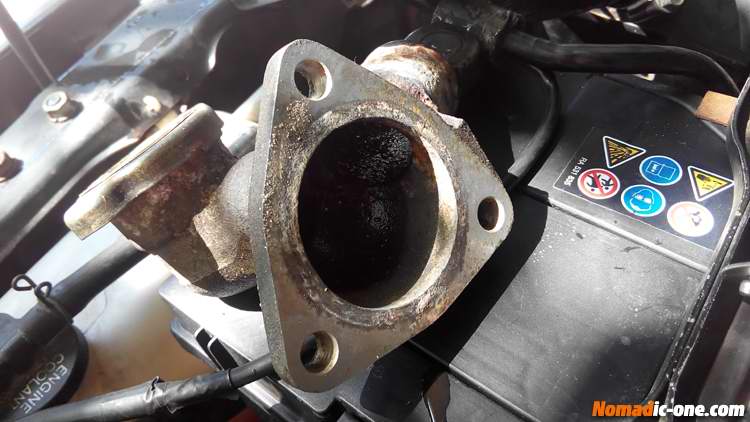

The housing needs a bit of cleaning, there is no paper gasket

Landcruiser LJ70 Thermostat housing

Have a look at the result, before and after;

A little oxide in the edges needed cleaning

Toyota Land Cruiser LJ70 Thermostat housing

When ordering the Thermostat, it's best to also order the rubber seal, if not included with the thermostat.

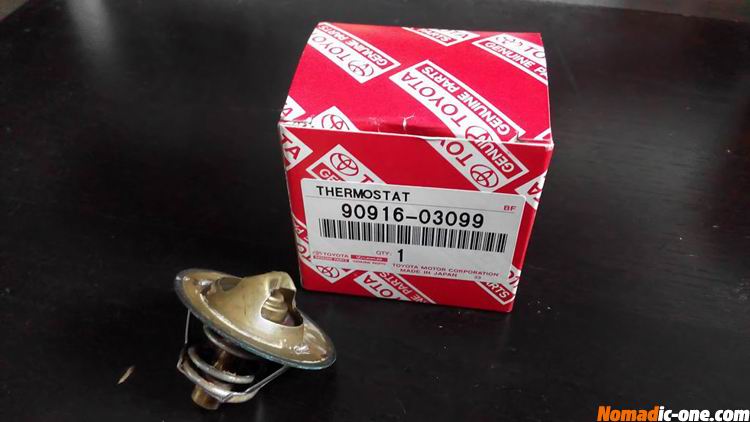

Toyota Land Cruiser LJ70 Thermostat 90916-03099

Just to be sure have liquid gasket sealant at hand when the thermostat housing starts leaking afterwards.

Not sure if the dashboard temperature is showing a correct value, measure temperature yourself with this device

A few prices for a Toyota Land Cruiser LJ70 Thermostat with Toyota part number 90916-03099
